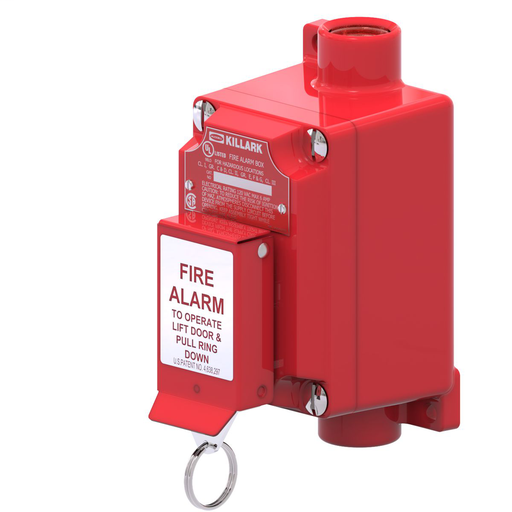

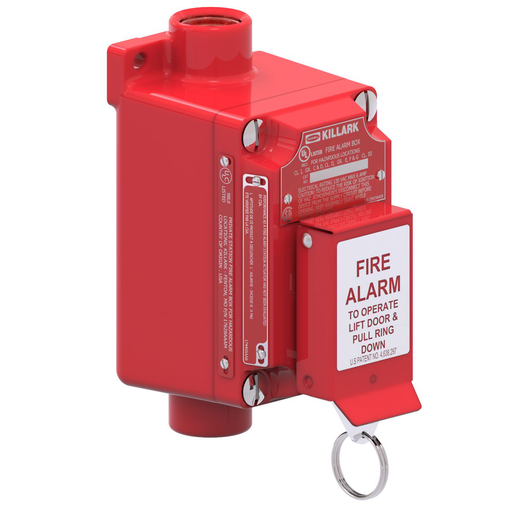

Product image for Killark XAL-53 XAL Series - Aluminum Feed-Thru Fire Alarm Station With Pull-Ring Activation - Hub Size 3/4" Npt - 1NO/1NC Contact Rating
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Killark XAL-53 XAL Series - Aluminum Feed-Thru Fire Alarm Station With Pull-Ring Activation - Hub Size 3/4" Npt - 1NO/1NC Contact Rating

Manufacturer: Killark | Catalog # XAL-53 | Echo Electric Part # 263791
$1,503.55/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Installation / Instruction Manual
Killark XCS Series Fire Alarm Station for Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 7 & 9 protection is required.

Technical Information

Action
SP
Actuator
Pull ring
Amperage
10 Amp
Applications
Hazardous Areas Due to the Presence of Flammable Gases or Vapors, Combustible Dusts, or Easily Ignitable Fibers or Flyings. Installation at Petroleum Refineries, Chemical and Petrochemical Plants, Storage Areas and other Processing Facilities where Hazardous Substances are Handled or Stored. Areas where Emergency Control of Fire Alarm or Signal Circuits is Required
Contact Configuration
1-NO/1-NC
Contact Rating
7200 VA (make), 720 VA (break), 10A cont. @ 600V AC; 2.5A cont. @ 600V DC.
Enclosure
Aluminum enclosure
Enclosure Material
Stainless Steel
Frequency
50/60 Hz
Material
Aluminum
Number of Poles
1 Pole
Operating Voltage
600 V
Size
6-27/64" H x 3-7/64" W x 4-9/64"
Type
Non-Reversing
Voltage
600 VAC

Manufacturer Information

Brand
Killark Electric

General Product Info

12-Digit UPC
783936880389
Color
Red
Finish
Textured Powder Epoxy Paint
GTiN
00783936880389
Product Series
XAL
Product UPC
78393688038
Weight
2.67 lb

Dimensions

Height
4 Inch
Length
7-1/2 Inch
Width
6 in

Certifications and Compliance

Country of Origin
USA
Features
  • Enclosure is made of copper free aluminum alloy
  • Conduit openings are 3/4 NPT feed through.
  • Red, textured powder epoxy paint finish is standard on box and cover to provide high visibility for alarm station.
  • Bilingual nameplates included per CSA requirement.
  • Internal ground screw is standard.
  • The alarm station is activated by lifting the front cover and pulling down ring. This quick easy to use two-step process prevents unintentional operation.
Hazardous Rating(s)
  • Class I, Divisions 1 & 2, Groups C, D
  • Class I, Zones 1 & 2, Groups IIB, IIA
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2
