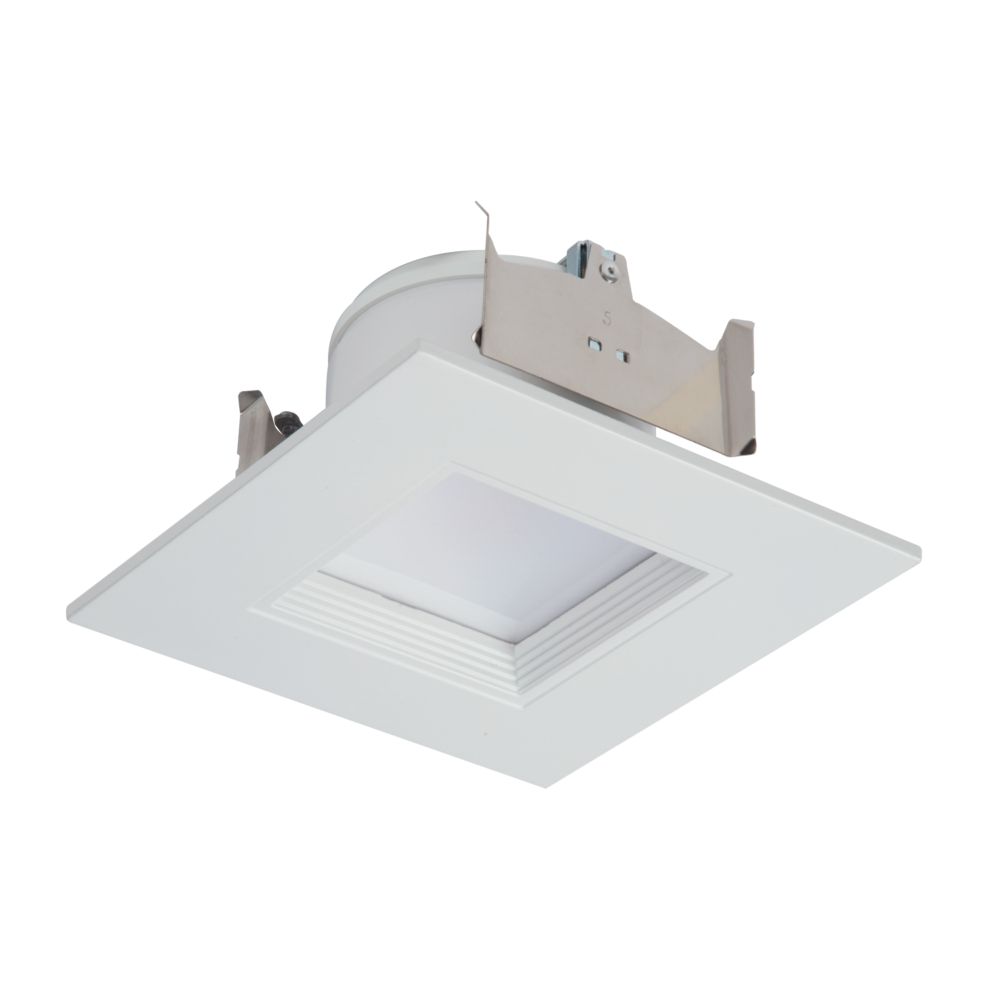

Product image for Halo RSQ4089FS1EMWWB 4" all- purpose square LED module, 90 CRI, selectable CCT (2700K-5000K CCT), 800 lumens, white
Image thumbnail 0
Image thumbnail 1
Email

Halo RSQ4089FS1EMWWB 4" all- purpose square LED module, 90 CRI, selectable CCT (2700K-5000K CCT), 800 lumens, white

Manufacturer: Cooper Lighting | Catalog # RSQ4089FS1EMWWB | Echo Electric Part # 268517
$52.36/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Installation / Instruction Manual
The RSQ4 is an integrated LED module / trim with a square shallow lens suitable for new construction, remodel and retrofit installation. Certified for use with Halo and compatible 4” housings and can be used with housings in direct contact with insulation. Integral gasket provides airtight compliance in non-airtight housings, provides code compliance and additional energy savings. Use for general area lighting in low to medium height ceilings where energy savings and long life are desired.

Technical Information

Amperage
0.082 Amp
Applications
Lighting
Color Temperature
5000 K
Correlated Color Temp
2,700 K
Lamp Type
LED
Lumens
800 Lumen
Mounting Type
Recessed
Type
4" RSQ4 Square LED Module
Voltage
120 Volt
Wattage
9.8 Watt

Manufacturer Information

Brand
Cooper Lighting Solutions
Sub Brand
Market Pro

General Product Info

12-Digit UPC
080083824496
GTiN
00080083824496
Product UPC
08008382449
Weight
0.85 lb

Dimensions

Diameter
4 Inch
Height
5.313 Inch
Length
5-3/4 Inch
Width
2.75 in

Certifications and Compliance

ARRA Compliant
No
Country of Origin
China
Features
  • 5.75 IN Length 2.75 IN Width 5.313 IN Height
  • 90 CRI: 2700K, 3000K, 3500K, 4000K CCT
  • Select from 5 CCTs via switch, 2700K, 3000K, 3500K, 4000K, 5000K CCT
  • Retrofits existing 4\" housings with screwbase adapter included
  • Use with Halo 4\" LED housings - new construction & remodel
  • Dimmable
  • Friction Blade mounting
  • Damp location and Wet location shower listed
  • ENERGY STAR® certified
  • LED connector is CA Title-24 high efficacy compliant, and cULus Listed
