Square D 50441 Closed Toroid A Type

Manufacturer: Square-D / Schneider | Catalog # 50441 | Echo Electric Part # 269126
$1,429.64/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

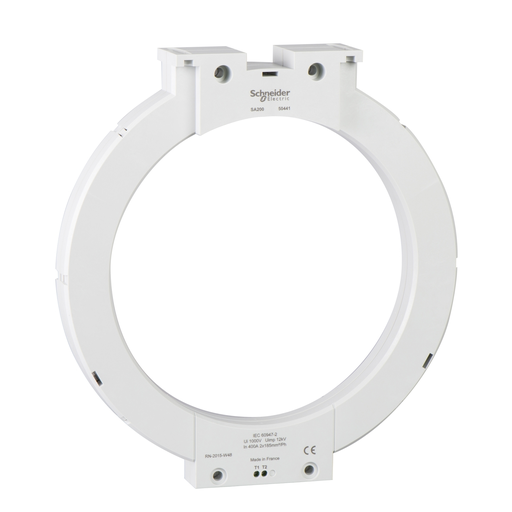

This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 400A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 200 millimeters and the weight is 1.320kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 100 millimeters. The maximum cross section per phase (R, S, T, N) is 2 cables of 185mm² for a copper conductor.

Technical Information

Amperage
400 Amp
Applications
EQUIPMENT MONITORING AND CONTROL
Mounting Type
Fixed Cables),Fixed Plain Backplate),Fixed Profiled Sheet Metal),Fixed Slotted Backplate)
Net Weight
1.32 kg
Operating Temperature
-35-70 Adegrees C
Range
Vigirex
Standard
IEC 60947-2
Storage Temperature
-55-85 degrees C
TC Connection
TUNNEL TYPE TERMINALS : >= 0.22 MMA
Type
EARTH LEAKAGE CURRENT SENSOR SA200
Voltage
1k Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SQUARE D

General Product Info

12-Digit UPC
303430504415
Environmental Conditions
EXPOSURE TO DAMP HEAT NOT IN SERVICE 25...55 A?C, RH 95 ) 28 CYCLES IEC 60068-2-30-SALT MISTKB/2 IEC 60068-2-52-EXPOSURE TO DAMP HEAT IN SERVICECATEGORY C2 48 HOURS IEC 60068-2-56
GTiN
03303430504412
Product UPC
30343050441
Weight
1.32 kg

Dimensions

Chain Cable Diameter
100-100 mm
Depth
46 mm
Diameter
196 mm
Height
256 mm
Length
46 mm
Warranty Length
18 mth
Width
274 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
