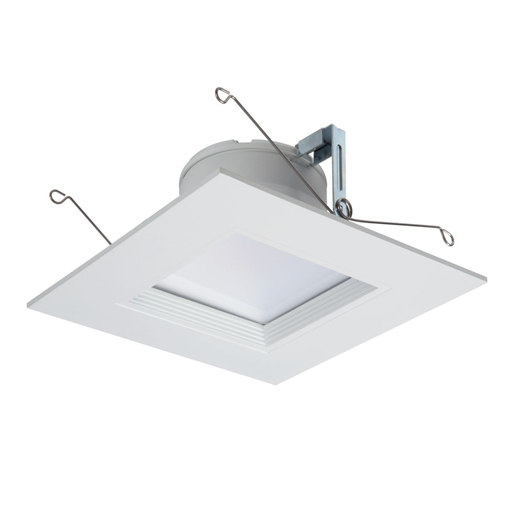

Halo RSQ6089301EMWWB 6" Square LED Retrofit Trim, 800 LM, 3000K, 90CRI

Manufacturer: Cooper Lighting | Catalog # RSQ6089301EMWWB | Echo Electric Part # 272955
$51.87/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Installation / Instruction Manual
The RSQ6 is an integrated LED module / trim with a square shallow lens suitable for new construction, remodel and retrofit installation. Certified for use with Halo and compatible 6” housings and can be used with housings in direct contact with insulation. Integral gasket provides airtight compliance in non-airtight housings, provides code compliance and additional energy savings. Use for general area lighting in low to medium height ceilings where energy savings and long life are desired.

Technical Information

Amperage
0.078 Amp
Applications
Lighting
Ballast Type
N/A
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Lamp Type
LED
Lumens
844 Lumen
Mounting Type
Recessed
Style
(blank)
Type
6" RSQ6 Square LED Module
Voltage
120 Volt
Wattage
9 Watt

Manufacturer Information

Brand
Halo
Sub Brand
RSQ6 All-Purpose Square LED Module

General Product Info

12-Digit UPC
080083824632
GTiN
00080083824632
Product UPC
08008382463
Weight
1.27 lb

Dimensions

Diameter
6 Inch
Height
7-1/2 Inch
Length
7-7/8 Inch
Width
3.375 in

Certifications and Compliance

ARRA Compliant
No
Country of Origin
China
Features
  • 7.875 IN Length 3.375 IN Width 7.5 IN Height
  • 90 CRI: 2700K, 3000K, 3500K, 4000K CCT
  • Select from 5 CCTs via switch, 2700K, 3000K, 3500K, 4000K, 5000K CCT
  • Retrofits existing 6\" housings with screwbase adapter included
  • Use with Halo 6\" LED housings - new construction & remodel
  • Dimmable
  • Torsion Spring or Friction Blade mounting
  • Damp location and Wet location shower listed
  • ENERGY STAR® certified
  • LED connector is CA Title-24 high efficacy compliant, and cULus Listed
