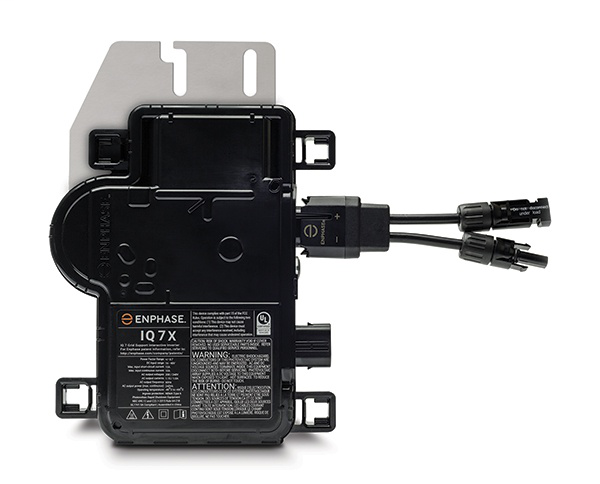

Product image for ENPH IQ7X-96-2-US IQ7X MICROINVERTER COMPATIBLE WITH 96 CELL PV MODULES, 320VA PEAK POWER, MC4 DC CONNECTORS
Image thumbnail 0
Image thumbnail 1
Email

ENPH IQ7X-96-2-US IQ7X MICROINVERTER COMPATIBLE WITH 96 CELL PV MODULES, 320VA PEAK POWER, MC4 DC CONNECTORS

Manufacturer: Enphase Energy | Catalog # IQ7X-96-2-US | Echo Electric Part # 275394
$211.01/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
The smart-grid ready Enphase IQ 7X Microinverter is the high-power variant of the seventh-generation IQ platform and is designed for 96-cell modules. Like the IQ 7 and IQ 7+, its polymeric enclosure and revolutionary cabling system simplify installation.

Technical Information

Compliance Type
Ca Rule 21 (Ul 1741-Sa) Ul 62109-1,Can/Csa-C22.2 No. 107.1-01 This Product Is Ul Listed As Pv Rapid Shut Down Equipment And Conforms With Nec-2014 And Nec-2017 Section 690.12 And C22.1-2015 Rule 64-218 Rapid Shutdown Of Pv Systems,Fcc Part 15 Class B,For Ac And Dc Conductors,Ices-0003 Class B,Ul1741/Ieee1547,When Installed According ManufacturerS Instructions.
Cooling Concept
Natural Convection - No Fans
Enclosure Rating
6
Enclosure Type
Class Ii Double-Insulated, Corrosion Resistant Polymeric Enclosure
Frequency
60 Hz
Max Input Voltage
80 V
Max Output Current
1.31 A
Max Output Power
315 VA
Operating Temperature
-40 To 60 degrees C
Operating Voltage
25-80 V

Manufacturer Information

Brand
Enphase Energy

General Product Info

Weight
2.38 lb
Efficient and Reliable
  • Optimized For High Powered 96-Cell* Modules
  • Highest Cec Efficiency Of 97.5%
  • More Than A Million Hours Of Testing
  • Class Ii Double-Insulated Enclosure
  • Ul Listed
Note
  • The Iq 7X Is Required To Support 96-Cell Modules.
Overview
  • The High-Powered Smart Grid-Ready Enphase Iq 7X Micro™ Dramatically Simplifies The Installation Process While Achieving The Highest System Efficiency For Systems With 96-Cell Modules.
  • Part Of The Enphase Iq System, The Iq 7X Micro Integrates With The Enphase Iq Envoy™, Enphase Iq Battery™, And The Enphase Enlighten™ Monitoring And Analysis Software.
  • The Iq Series Microinverters Extend The Reliability Standards Set Forth By Previous Generations And Undergo Over A Million Hours Of Power-On Testing, Enabling Enphase To Provide An Industry-Leading Warranty Of Up To 25 Years.
Easy to Install
  • Lightweight And Simple
  • Faster Installation With Improved, Lighter Two-Wire Cabling
  • Built-In Rapid Shutdown Compliant (Nec 2014 & 2017)
Smart Grid Ready
  • Complies With Advanced Grid Support, Voltage And Frequency Ride-Through Requirements
  • Remotely Updates To Respond To Changing Grid Requirements
  • Configurable For Varying Grid Profiles
  • Meets Ca Rule 21 (Ul 1741-Sa)
