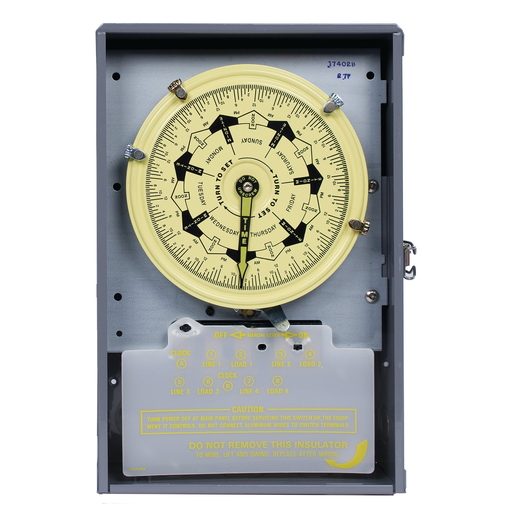

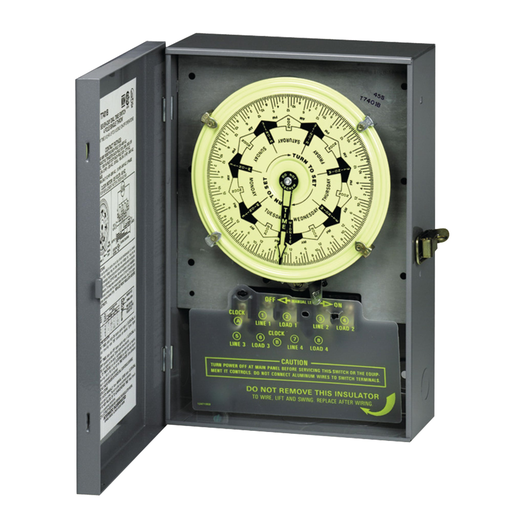

Product image for Intermatic T7402B NEMA 1 Steel Case 208 to 277 VAC 60 Hz 40 Amp 4PST Electromechanical Time Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Intermatic T7402B NEMA 1 Steel Case 208 to 277 VAC 60 Hz 40 Amp 4PST Electromechanical Time Switch

Manufacturer: Intermatic, Inc | Catalog # T7402B | Echo Electric Part # 280811
$238.42/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
These 7-Day Mechanical Time Switches offer the capability of having a different schedule for each day of the week. They can handle up to 40 A of electrical loads per circuit and have separate terminals for powering the clock motor. These time switches can handle up to four loads per clock, providing a single control for easier installation. Each time switch comes with 7 ON and 7 OFF trippers, allowing for at least one ON/OFF operation each day.

Technical Information

Action
4PST
Applications
Commercial, Industrial, Residential, Indoor, HVACR
Connection Type
Screw Terminal
Contact Configuration
4 NO - 4PST
Contact Rating
40 A at 120 - 480 VAC
Enclosure
NEMA 1 Steel
Enclosure Type
NEMA 1, Steel
Frequency
60 Hz
Input Voltage
208-277 V
Material
Polycarbonate
Max Operating Temperature
130 degrees F
Max Wire Size
8 AWG
Min Operating Temperature
-40 degrees C
Min Wire Size
14 AWG
Mounting Type
Wall Mount
Number of Circuits
4
Number of Poles
4 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
1000 VA at 120 - 277 VAC/3W
Power Source
2 hp at 120 VAC, 5 hp at 240 VAC (1 Phase), 7-1/2 hp at 208 VAC (3 Phase), 10 hp at 240 VAC (3 Phase)
Size
12-1/2 HEIGHT X 8-1/4 WIDTH X 4 DEPTH IN, 31.7 HEIGHT X 21.0 WIDTH X 10.2 CM
Switch Type
4-SPST
TC Connection
Screw Terminal
Temperature Rating
-40 to 130 degrees F
Type
Electromechanical, 2-Gang
Voltage
208-277 VAC
Wattage
3 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275462212
Color
Gray
GTiN
00078275462212
Product UPC
07827546221

Dimensions

Depth
3-3/4 Inch
Height
13-1/8 Inch
Warranty Length
1 yr
Width
9 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Different ON/OFF programs each day of the week
  • True 7-day load control with minimum ON/OFF time of 3 1?2 hours
  • Separate clock motor terminals for switching loads not on line voltage
  • Carry-over automatically rewinds when power resumes
  • Minimum of 16-hour carry-over for maintaining preset schedules during power failures
  • Available with Type 3R rated outdoor metal enclosure or Type 1 rated indoor metal in gray finish with separate grounding terminal
  • NA
