GEN RXSW150A3 Smart Switch 150 Amp

Manufacturer: Generac Power Systems Inc | Catalog # RXSW150A3 | Echo Electric Part # 284531
$1,103.40/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

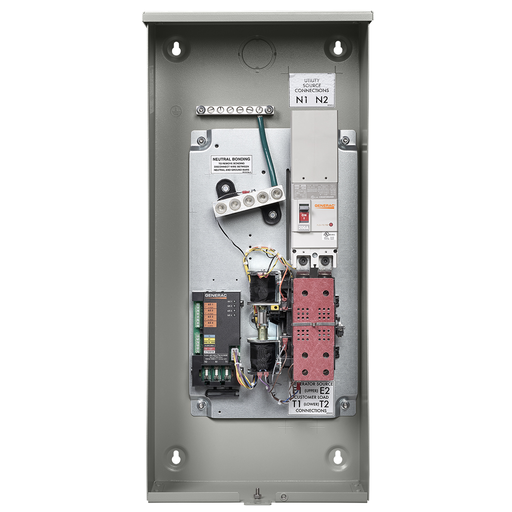

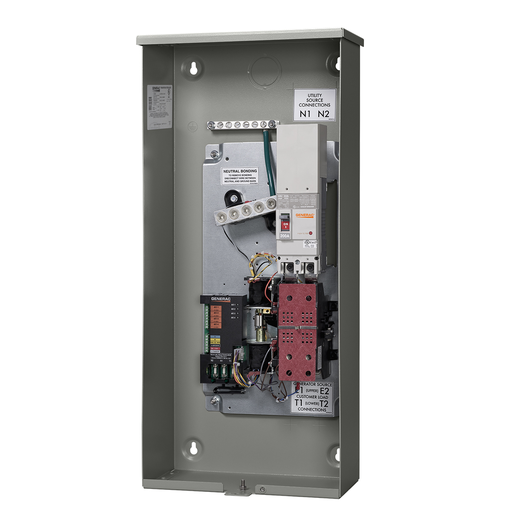

This 150 amp automatic transfer switch is used for transferring electrical load from a utility (normal) power source to a generator (standby) power source. Transfer of electrical loads occurs automatically when the utility power source has failed or is substantially reduced and the generator source voltage and frequency have reached an acceptable level. The transfer switch prevents electrical feedback between two different power sources (such as the utility and generator sources) and, for that reason, codes require it in all standby electric system installations. The transfer switch consists of a transfer mechanism, utility service disconnect circuit breaker and a smart A/C module incorporating fuses and two terminal blocks for transfer switch connections.

Technical Information

Max Wattage
22000 W

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Generac Power Systems, Inc.

General Product Info

12-Digit UPC
696471069624
GTiN
00696471069624
Product UPC
69647106962
Weight
30 lb

Dimensions

Depth
8 Inch
Height
31 Inch
Warranty Length
5 yr
Width
15 in

Certifications and Compliance

CA Prop65 Warning
Yes
Country of Origin
USA
Features
  • Smart Switch 150 Amp SE 1Ø NEMA 3R
  • Through the use of digital power technology, Generac's singe-phase service rated transfer switch has the ability to manage 4 individual HVAC loads with no additional hardware
  • Designed for use with single-phase generators that utilize an Evolution or Nexus Controller
  • Aluminum Nema/UL type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
  • Simplify installation with a board that combines load management and transfer switch hardware
  • Decreases transfer switch complexity
  • Smaller fuses integrated into the control board
  • Gain even more flexibility when used in tandem with Smart Management Module
  • The smart A/C module manages the loads by shedding the connected loads in the event of a drop in generator frequency (overload)
  • Single-phase, 120/240 Volt; UL Listed transfer switch
