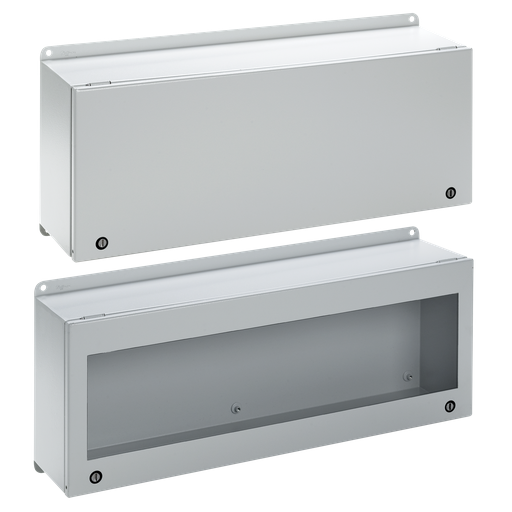

Product image for Hoffman LWC233116 INLINE Landscape, Type 4 and 12, 230x 310x 155mm, Lt Gray, Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman LWC233116 INLINE Landscape, Type 4 and 12, 230x 310x 155mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # LWC233116 | Echo Electric Part # 298452
$352.00/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
When applications require mounting electrical components the full width of an enclosure, the landscape orientation of this aesthetic InLine Enclosure makes it possible. Full-width mounting brackets can be drilled anywhere along their length, providing maximum mounting flexibility.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
IP Rating
66
Material
Steel
Size
230x310x155mm
Standard
12,4,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66Window Door Enclosures:,NEMA/EEMAC Type 3,Solid Door Enclosures:,T,Type 3,UL 508A Listed
Type
Type 4 Mild Steel Freestanding Enclosure

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Inline™

General Product Info

12-Digit UPC
783510110314
Color
Light Gray
Finish
Powder Coated
GTiN
00783510110314
Product UPC
78351011031
Weight
10.18 lb

Dimensions

Depth
6.1 Inch
Height
9.06 Inch
Length
14 Inch
Thickness
1.5 mm
Width
12.2 in
Features
  • Metric dimensions
  • Seams continuously welded and ground smooth
  • External formed body flange channels away liquids
  • Large perimeter body opening
  • External welded-on mounting brackets for easy installation
  • Bonding provision on cover and door
  • Hardware kit includes panel mounting screws and grounding hardware
  • Removable hinged door
  • Self-grounding, slotted quarter-turn latches
  • Door opens 180 degrees
  • Window door models include flush-mounted 4.8-mm (3/16-in.) clear polycarbonate window
  • Seamless foam-in-place gasket
