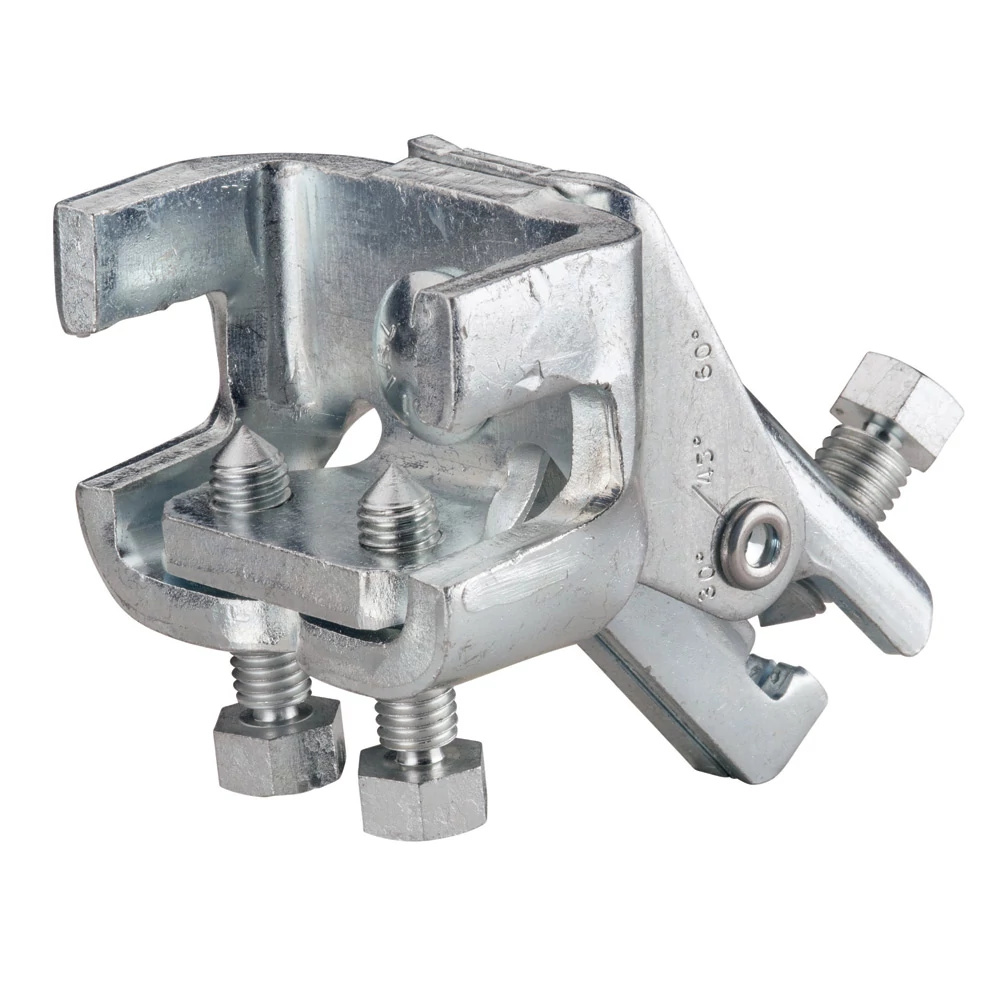

Caddy CSBS1A Steel Flange Adapter Assembly for 1/4"-3/4" Flange electrogalvanized

Manufacturer: Erico, Inc | Catalog # CSBS1A | Echo Electric Part # 305182
$10,977.41/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

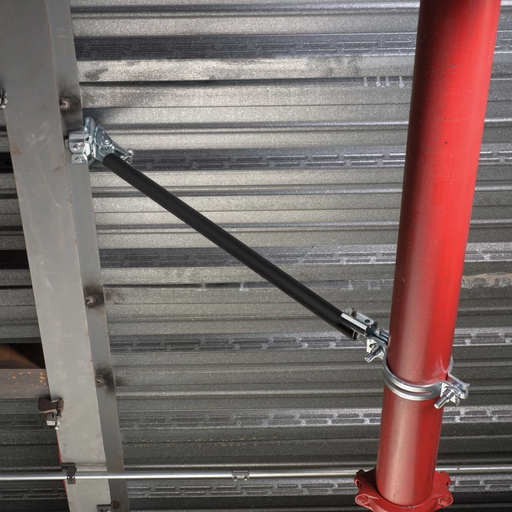

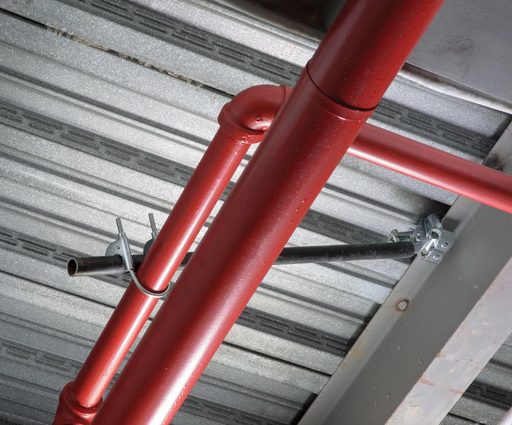

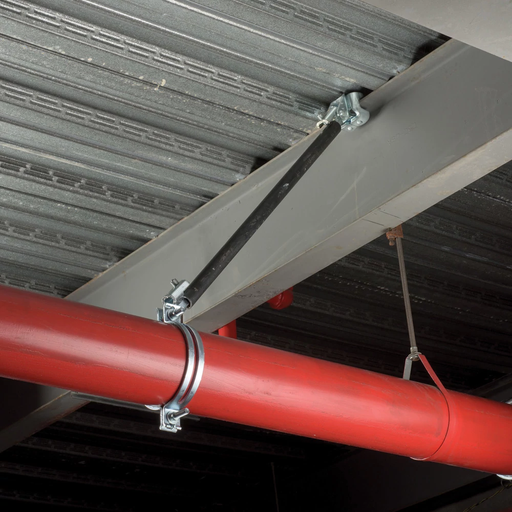

Preassembled adapter used to fasten a seismic brace to a steel flange. Installs on top or bottom flange of I-beam or bar joist. Thumb spring retainer for easy positioning. Snap-off bolt head for easy inspection.

Technical Information

Angle
45 degrees
Applications
Fire Sprinkler; Seismic Bracing
Material
Steel
Type
Structural Attachments for Rigid Bracing

Packaging

Standard Packaging Qty
5 pc

Manufacturer Information

Brand
nVent Caddy

General Product Info

12-Digit UPC
782856920090
Finish
Electro Galvanized
GTiN
00782856920090
Product UPC
78285692009
Weight
1.65 kg

Dimensions

Height
2-5/8 Inch
Width
3 5/8 in

Certifications and Compliance

Certifications
CULus,FM,FM Tested,OSHPD
Features
  • Steel Flange Adapter and Universal Structural Bracket are preassembled, limiting work required in the field

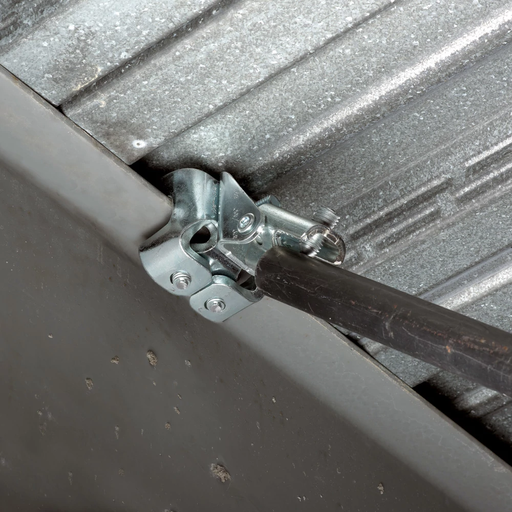

  • Installs on top or bottom flange of I-beams? or bar joists
  • Low profile easily fits between metal deck and steel structure
  • Thumb spring retainer allows for ease of positioning
  • Integrated angle gauge easily displays brace member angle of installation
  • Snap-off bolt head helps enable easy installation and inspection of seismic sway braces
  • Works with 1\" through 2\" brace pipes to reduce inventory
  • Meets NFPA® 13 as pre-qualified for seismic applications
  • FM Approved with the following brace members: 1-2 in Sch40 Pipe
  • FM Specification Tested with the following brace members: 1-2 in Sch40 Pipe
Certifications
  • FM Tested ANSI/FM 1950
  • cUL ULC/ORD-C203A
  • UL UL 203A
  • FM Approved, Seismic FM 1950-2013
