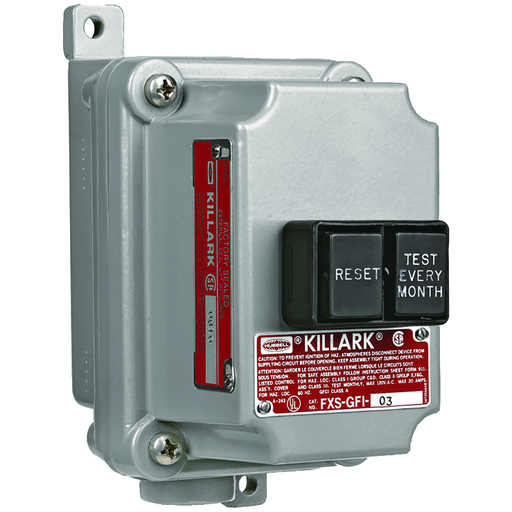

Product image for Killark FXS-GFI-2020 FXS Series - Aluminum Dead-End Ground Fault Interrupter Unit - Factory Sealed - Hub Size 3/4" - 20A/120Vac/60Hz - 4-6 Miliamp Trip Setting
Email

Killark FXS-GFI-2020 FXS Series - Aluminum Dead-End Ground Fault Interrupter Unit - Factory Sealed - Hub Size 3/4" - 20A/120Vac/60Hz - 4-6 Miliamp Trip Setting

Manufacturer: Killark | Catalog # FXS-GFI-2020 | Echo Electric Part # 341058
$1,697.91/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
FXS Series - Aluminum Dead-End Ground Fault Interrupter Unit - Factory Sealed - Hub Size 3/4 Inch - 20A/120Vac/60Hz - 4-6 Miliamp Trip Setting

Technical Information

Action
SP
Actuator
Push buttons
Amperage
20 Amp
Applications
FXS ground fault interrupters are designed to interrupt a circuit when a ground fault is detected on equipment which may be handled by personnel in hazardous locations.
Enclosure
Aluminum factory sealed dead-end splice box
Frequency
50/60 Hz
NEMA Size
3
Number of Poles
2-2 Pole
Size
6-13/16" H x 3-11/16" W x 4-13/32" D
Type
Aluminum factory sealed ground fault interrupter
Voltage
120 VAC

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Killark

General Product Info

12-Digit UPC
783936198385
Color
Gray
GTiN
00783936198385
Product Series
FXS-GFI
Product UPC
78393619838

Dimensions

Height
6.813 Inch
Length
4.46 Inch
Width
3.688 in

Certifications and Compliance

Country of Origin
USA
Features
  • Eliminates external sealing requirements.
  • Lower installation cost.
  • NEMA 3 weatherproof.
  • Color coded wiring with more wiring space for easier field installation.
  • Stainless steel captive screws for cover assembly.
  • Lockout accessory available must be factory installed.
  • Ground boss for grounding in the splice box.
  • Device bodies and covers are copper-free cast aluminum alloy.
  • Push button, selector switches and pilot light bodies are copper-free aluminum.
  • Operating shaft in both push buttons and selector switches are stainless steel.
  • Killark SEAL-X Series Factory Sealed Control Stations provide Ground fault interrupting protection solutions in hazardous location areas. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
