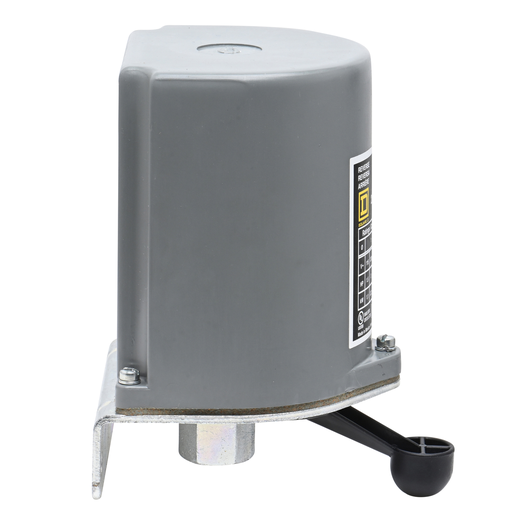

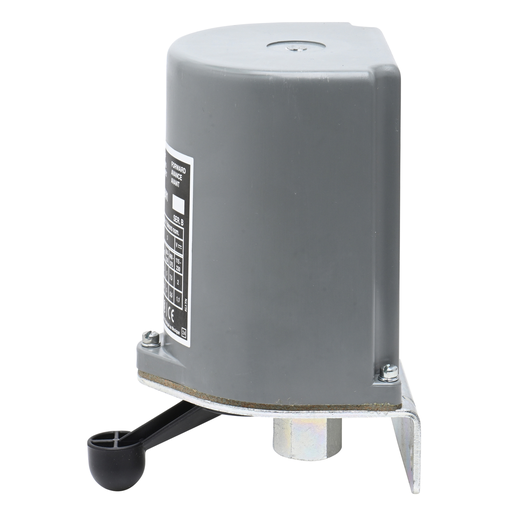

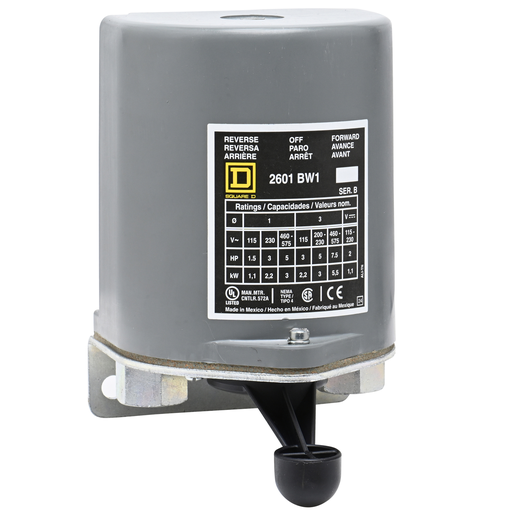

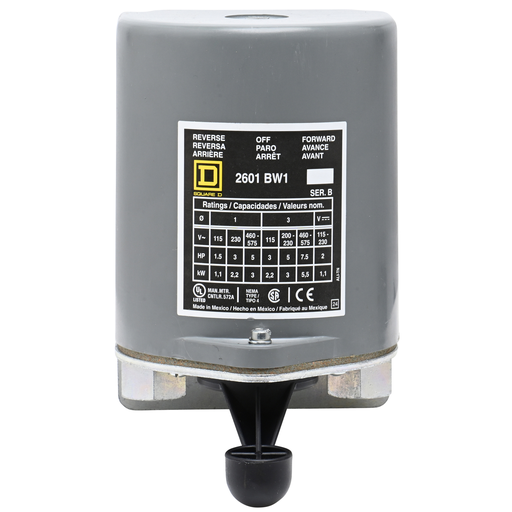

Square D 2601BW1 600 VAC 7.5 Hp NEMA 4 Reversing Drum Switch

Manufacturer: Square-D / Schneider | Catalog # 2601BW1 | Echo Electric Part # 346950
$953.95/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
2601 reversing drum switches are designed to starting and reversing motors by connecting them directly across the line. The devices can be used with squirrel cage and single-phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. A NEMA 4 watertight and dusttight enclosure is used to protect this switch. Enclosure is 6.89 inches tall, 4.40 inches wide and 5.50 inches deep. Drum switches are UL listed and CSA certified.

Technical Information

Actuator
STANDARD ONE-PIECE
Applications
DESIGNED TO START AND REVERSE MOTORS BY CONNECTING THEM DIRECTLY ACROSS-THE-LINE.
Contact Rating
1.5-1.5 HP 115 V AC, 1 PHASE-2-2 HP 230 V DC-3-3 HP 230 V AC, 1 PHASE-5-5 HP 460 V AC, 1 PHASE-5-5 HP 575 V AC, 1 PHASE-5-5 HP 200 V AC, 3 PHASE-5-5 HP 230 V AC, 3 PHASE-7.5-7.5 HP 460 V AC, 3 PHASE-7.5-7.5 HP 575 V AC, 3 PHASE-2-2 HP 115 V DC
Enclosure
4
Enclosure Rating
4
NEMA Size
4
Number of Poles
3 Pole
Size
5.50 in
TC Connection
Screw-clamp terminals
Type
Reversing Drum Switch
Voltage
250 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901784449
Environmental Conditions
BRUSHED STAINLESS STEEL - WATER TIGHT AND DUST TIGHT (INDOOR/OUTDOOR)
GTiN
00785901784449
Product UPC
78590178444

Dimensions

Depth
5-1/2 Inch
Height
6.89 Inch
Warranty Length
18 mth
Width
4.40 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
