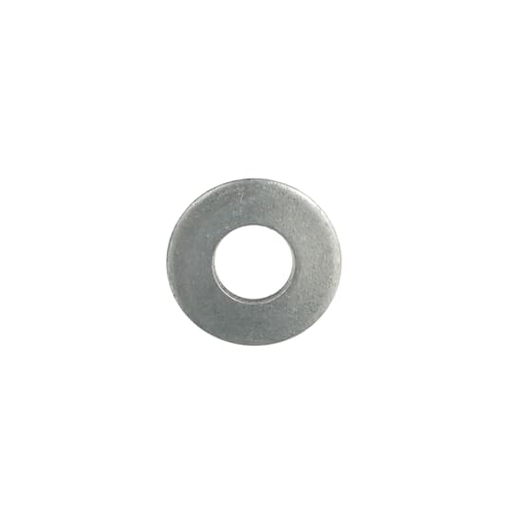

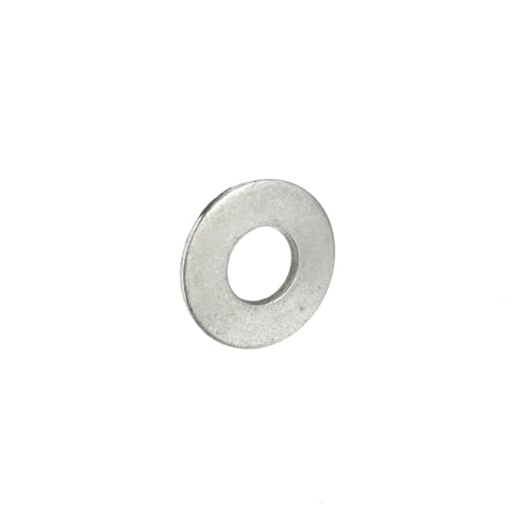

ABB 60803-TB WASHER, SPRING 1/2

Manufacturer: Thomas & Betts Co | Catalog # 60803-TB | Echo Electric Part # 349322
$1,088.19/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
Belleville Spring Washer, 1/2 Inch Bolt Size, Steel with Zinc Chromate Finish

Technical Information

Applications
For Tight, Secure Bus-Bar Connections
Material
Steel
Type
Belleville Washer

Manufacturer Information

Brand
ABB
Sub Brand
Color-Keyed®

General Product Info

12-Digit UPC
786210608037
Finish
Zinc
GTiN
05414363145219
Product UPC
78621060803

Dimensions

Inside Diameter
12.7 mm
Outside Diameter
20.6 mm
Thickness
2.5 mm
Application
  • For tight, secure bus-bar connections.
Notes
  • When bolting aluminum lugs and connectors to buss bars with steel or brass hardware, the recommended practice to ensure a tight connection is to use a Belleville spring washer on top of a flat washer under the bolt head or nut. For heavy-duty service where the heat rise is expected to exceed 30 degrees Celcius above ambient, this procedure maintains constant pressure as the connector metals expand and contract with temperature changes.
