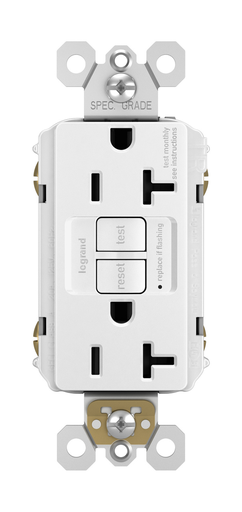

P&S 2097TRAPLW RADIANT SELFTEST TR

Manufacturer: Pass & Seymour / Legrand | Catalog # 2097TRAPLW | Echo Electric Part # 355596

$68.03/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Perfect for providing dedicated power and reliable ground-fault protection, the simplex 20A GFCI features a single, tamper-resistant outlet and self-tests automatically every three seconds for electrical safety you can trust. Meeting the National Electrical Code requirements for ground fault protection in the home, GFCI wall outlets make it easier to fix trips right where they happen – no more confusion or running to the breaker box. 20A outlets are ideal for use with larger appliances, as well as to meet regional needs (Chicago, Canada).GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
20 Amp
Applications
Commercial,Residential
Indoor Outdoor
Indoor
Material
Thermoplastic
Outlet Type
GFCI,Indoor,Residential,Self-Test,Tamper-Resistant
Type
GFCI,Tamper-Resistant
Voltage
125 Volt
Wattage
2500 Watt
Weather Resistant
No

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007381429
Color
White
Finish
Matte
GTiN
00785007381429
Product UPC
78500738142

Dimensions

Depth
1.03 Inch
Height
4.2 Inch
Length
1.03 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Country of Origin
China
Features
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device
  • Designed for dedicated use with large and/or stationary appliances, this GFCI outlet limits tripping caused from variable-speed drives
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected
  • Replaces a traditional outlet easily, in as little as 10 minutes
  • Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect

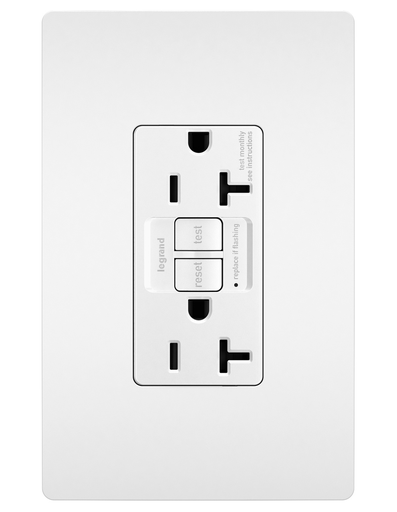

  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection
Certifications
  • RoHS Compliant
  • cULus Listed
