Product image for Pass & Seymour L203045AN Right Angle Locking Device Adapter
Image thumbnail 0
Image thumbnail 1
Email

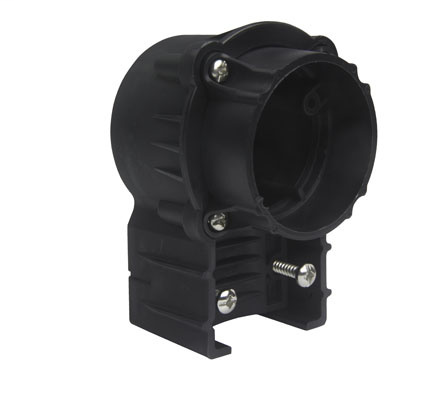

Pass & Seymour L203045AN Right Angle Locking Device Adapter

Manufacturer: Pass & Seymour / Legrand | Catalog # L203045-AN | Echo Electric Part # 366275
$37.12/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Installation / Instruction Manual
ANGLE ADAPTER 20/30A 4and5W TURNLOCK

Technical Information

Amperage
20 Amp
Applications
Industrial
Conductor Size
18-8 AWG
Material
Nylon
NEMA Size
4,5
Number of Poles
2 Pole
Number of Wires
4 Wire
Size
2.675 L x 1.65 W x 3.868 H In
Type
Adapter, Angle Adapter
Wire Size
18-8 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007165456
Color
Black
Environmental Conditions
-40 to 115 C
GTiN
00785007165456
Product UPC
78500716545
UNSPSC
39121403

Dimensions

Depth
1.65 Inch
Height
3.868 Inch
Width
2.675 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Angle plugs and adapters both allow for 4-position face rotation.
  • 20/30A 3 Wire Turnlok: Right Angle Adapters are adjustable up to 8 positions.
  • Angle adapters (sold separately) will accommodate all P&S Turnlok style plugs and connectors on a retrofit basis. Simply remove the straight handle body from the plug or connector face assembly, and replace with the angle adapter.
  • Tri-drive assembly and cord-grip screws are standard on all angle plugs and adapters.
  • Angle plugs and adapters have the same wide cord diameter range (.230''-1.150'') that is present on all Turnlok plugs and connectors.
Certifications
  • cULus Listed
