Klein ET900 USB Digital Meter, USB-A (Type A)

Manufacturer: Klein Tool | Catalog # ET900 | Echo Electric Part # 370063
$17.99/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 13 to 21 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

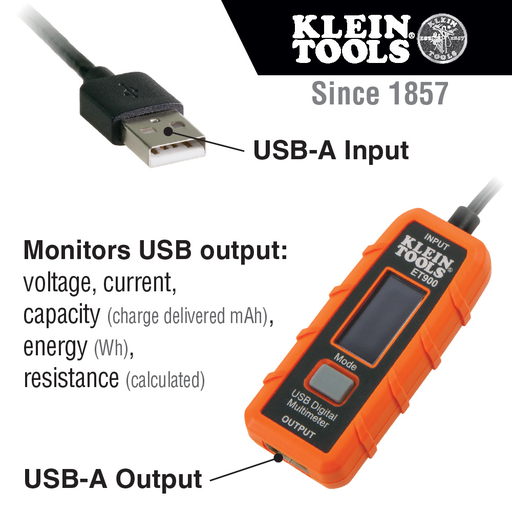

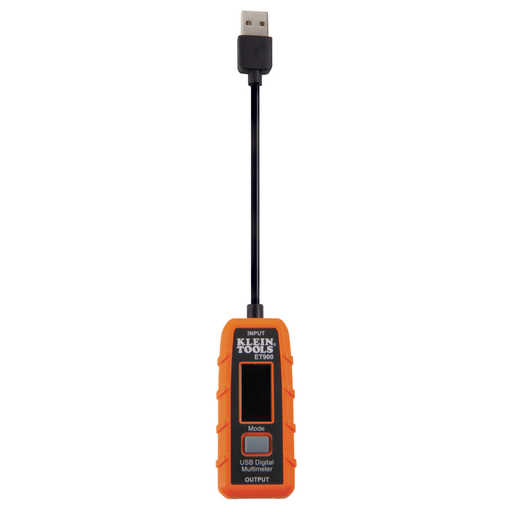

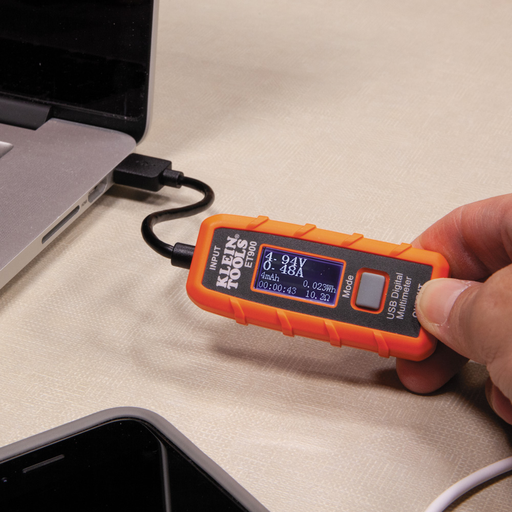

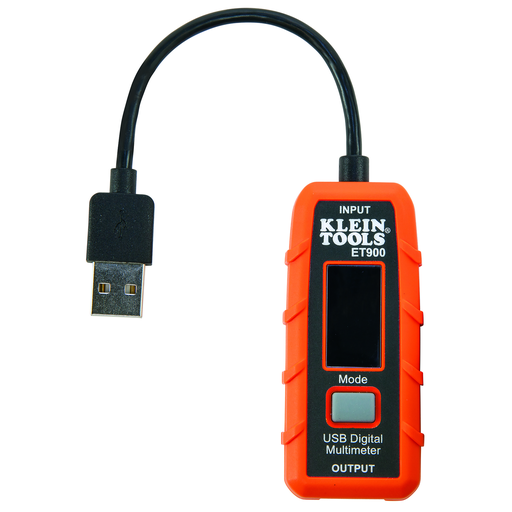

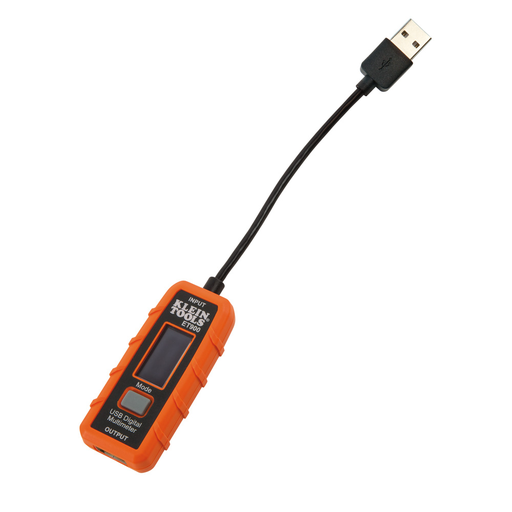

The Klein Tools ET900 is a USB digital meter for common standard USB-A (Type A) ports including Qualcomm Quick Charge® ports. It accurately and reliably measures and displays the USB port voltage, current, capacity, energy, and resistance simultaneously. It can function with any USB-A port that has the ability to deliver power. It requires NO batteries as it draws power from the power source to function.

Technical Information

Applications
For Calculating USB Port Voltage, Current, Capacity, Energy and Resistance
Current
3 Amp
Display Type
LCD
Material
Polymer
Resistance
400 ohms Maximum
TC Connection
USB-A (Type A)
Type
USB-A (Type A)
Voltage
20 Volt

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644691386
GTiN
00092644691386
Product UPC
09264469138
Weight
0.069 lb

Dimensions

Depth
8.35 Inch
Height
0.56 Inch
Overall Length
2.84 in
Width
1.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Country of Origin
China
Features
  • 3 to 20V DC; Current: 0.05 to 3A
  • Continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy, and resistance (calculated)
  • Tests most common standard USB-A ports, including Qualcomm Quick Charge® ports
  • Store and recall up to 10 readings
  • Voltage and current overload detection
  • Hi-resolution LCD for clear visibility in environments with low ambient lighting
  • Durable cable to allow easy access to hard-to-reach ports
  • Rugged, pocket-sized, and light weight Klein industrial design stands up to jobsite demands
  • Built to withstand a 6.6-Foot (2m) drop
  • No batteries needed; powered by the USB port being tested
  • Klein Tools' Most Compact USB Meter
Warnings
  • To ensure safe operation and service of this meter, follow all instructions. Failure to observe warnings can result in severe injury or death.
  • This meter will NOT display current below 50 milliamperes, even if it is allowing this to pass through. NOTE: The display will show zero current.
  • Do NOT use with ports that operate outside of the rated voltage and current. NEVER use on a circuit with voltage or current that exceeds the maximums specified for this device.
  • Do NOT use during electrical storms or in wet weather. Do NOT use if meter appears damaged. Use caution when working with voltages above 25V RMS or 24V DC. Such voltages pose a shock hazard.
