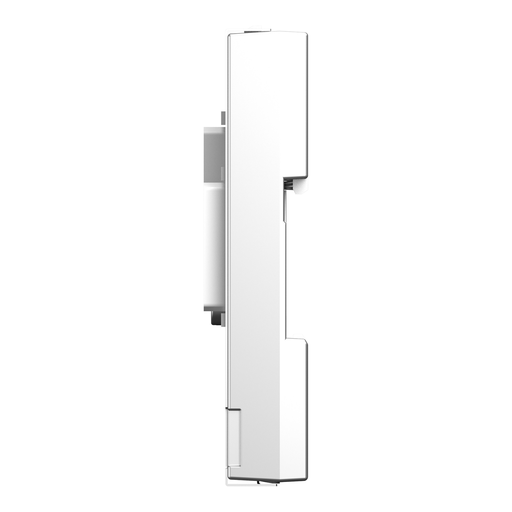

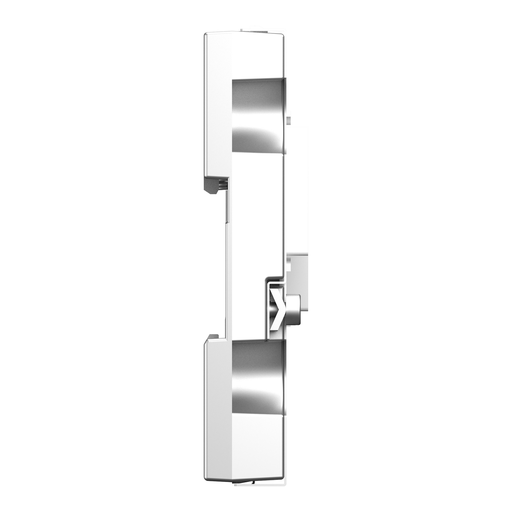

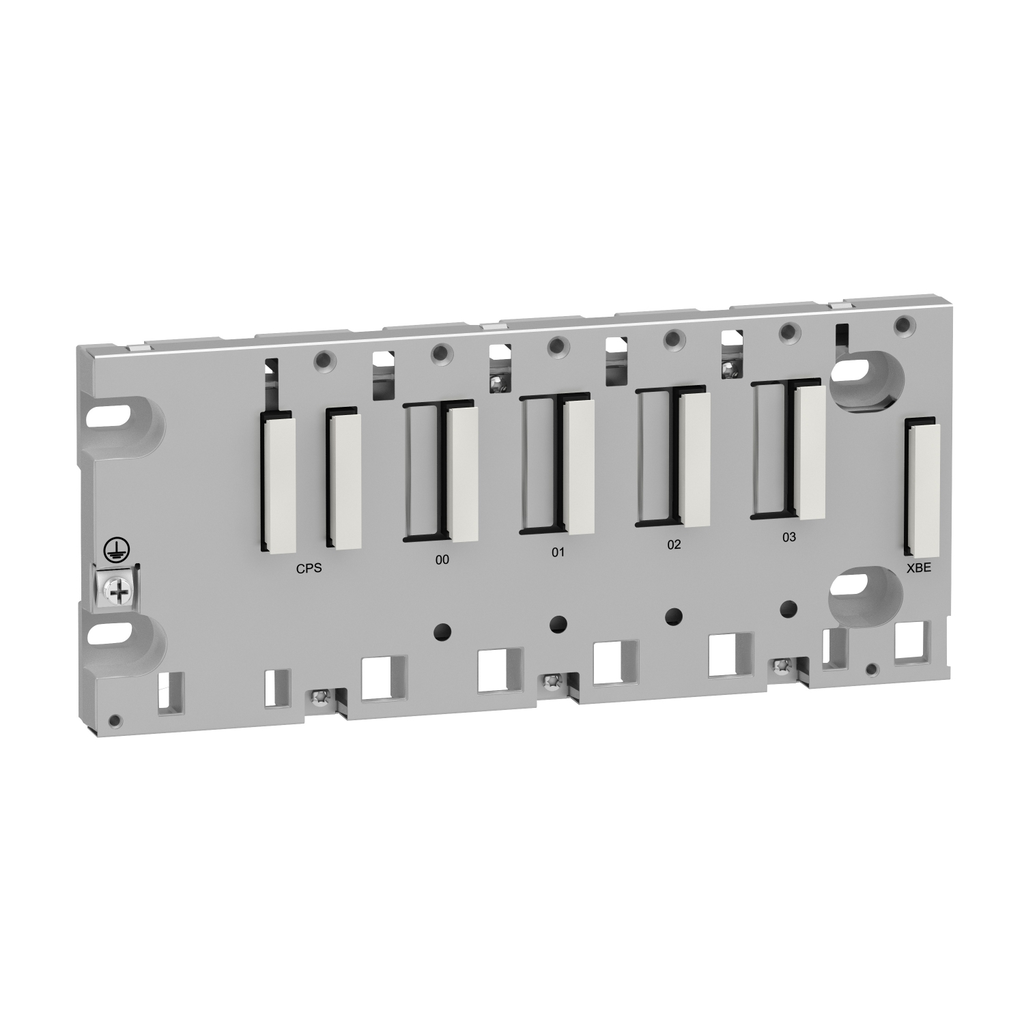

SQUARED BMXXBP0400H Backplane, Modi

Manufacturer: Square-D / Schneider | Catalog # BMXXBP0400H | Echo Electric Part # 389788
$257.23/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Backplane, Modicon X80, 4 slots, panel, mounitng plate or DIN rail mounting, ruggedized

Technical Information

Applications
For severe environments
Enclosure
IP20
Net Weight
0.63 kg
Standard
CSA C22.2 No 61010-2-201,EN/IEC 60079-0,EN/IEC 61000-6-5, Interface Type 1 And Type 2,EN/IEC 61010-2-201,EN/IEC 61131-2,EN/IEC 61850-3, Location G,IACS E10,UL 61010-2-201
Temperature Rating
-25-70 A?degrees C
Type
Ruggedized rack
Wattage
1 Watt

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
595864009356
GTiN
03595864009353
Weight
0.63 kg

Dimensions

Depth
19 mm
Height
103.7 mm
Warranty Length
18 mth
Width
242.4 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX Zone 2/22,CE,CSA,EAC,IECEx Zone 2/22,Merchant Navy,RCM,UKCA,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • BMXXSP0400
  • STBXSP3010
  • STBXSP3020
  • BMXXBE1000H
  • TSXTLYEX
  • BMXXEM010
  • BMXXBC008K
  • BMXXBC015K
  • BMXXBC030K
  • BMXXBC050K
  • BMXXBC120K
Cross Sell Products
  • BMXP341000H
  • BMXP342020H
  • BMXP3420302H
  • BMEH582040C
  • BMEH584040C
  • BMEH586040C
  • BMEP581020H
  • BMEP582020H
  • BMEP582040H
  • BMEP585040C
  • BMEP586040C
