Product image for Pass & Seymour 27W48 Turnlok® Watertight Connector, 20A 250V, L6-20R, NEMA 4X/6P, IP65/66/67 - Yellow
Image thumbnail 0
Image thumbnail 1
Email

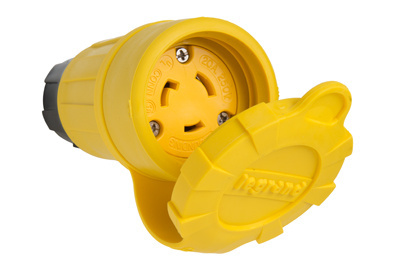

Pass & Seymour 27W48 Turnlok® Watertight Connector, 20A 250V, L6-20R, NEMA 4X/6P, IP65/66/67 - Yellow

Manufacturer: Pass & Seymour / Legrand | Catalog # 27W48 | Echo Electric Part # 392170
$141.53/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual
Locking Watertight Connector, 20amp 250volt, NEMA Configuration L6-20, multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.

Technical Information

Amperage
20 Amp
Applications
High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Conductor Size
14-10 AWG
Cord Type
12/3 SJ, 14/3 S to 10/3 S, .475" min to .720" max
Material
Rubber
NEMA
L6-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Type
Connector
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007033779
Color
Yellow
Environmental Conditions
-40 to 60 C
GTiN
00785007033779
Product UPC
78500703377
UNSPSC
39121403

Dimensions

Diameter
2.53 Inch
Length
4.03 Inch
Width
1.85 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather
  • Nickel-Plated blades and contacts for long lasting, superior corrosion resistance
  • Multi-point sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated
  • Devices resist high-pressure hose down of 1,500 psi
  • Color coded sealing bushings provided for large range of cord diameters
  • Large ribs on body for a superior grip when mating
