Erico 534042 Flexibar Advanced, 1,250 A, 10 Layers, 1.969" x 0.039", 987 kcmil, 6.56' long

Manufacturer: Erico, Inc | Catalog # 534042 | Echo Electric Part # 402487
$651.63/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page

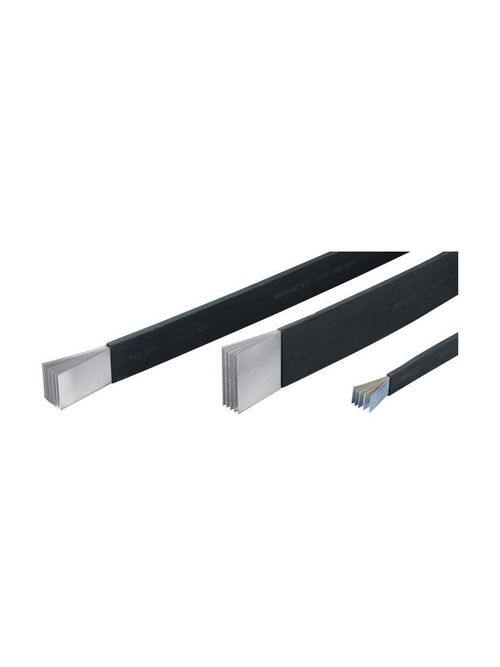

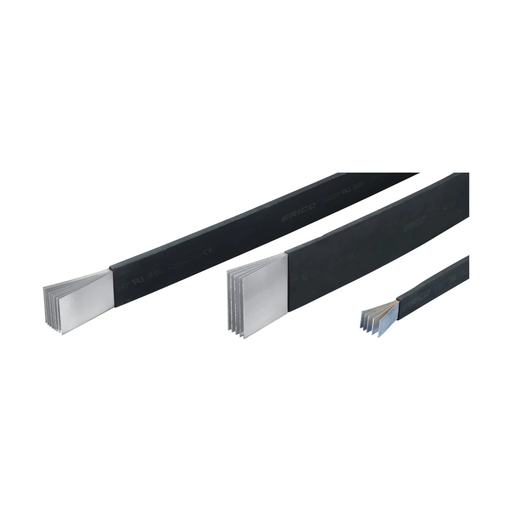

Flexible busbar with Advanced Technology design; thin layers of tinned electrolytic copper with high-resistance, halogen free, low smoke and flame retardant insulation. Flexibar Advanced 2 m long 10X50X1 mm.

Technical Information

Applications
Power Connections
Material
Copper
Type
nVent ERIFLEX Flexibar Flexible Busbar

Manufacturer Information

Brand
nVent Eriflex
Sub Brand
ERIFLEX

General Product Info

12-Digit UPC
782856937746
Finish
Tinned
GTiN
00782856937746
Product UPC
78285693774
Weight
9.68 kg

Dimensions

Length
6.56-6.56 Foot
Features
  • Thin layers of tinned electrolytic copper formed into a stack
  • Full range from 19.5 mm² up to 1200 mm² and 125 A to 2800 A
  • Insulated by high-resistance, halogen free, flame retardant and low smoke material with less than 20% contact with conductor for high flexibility
  • Easily bent, folded, and twisted, improving assembly flexibility, shortening connections, and decreasing footprint
  • Dramatically smaller and more flexible than comparable cable based on ampacity
  • Better power density than cable with lower skin effect ratio
  • Connections made by punching and bolting directly through the copper laminates or clamping onto the end of the nVent ERIFLEX Flexibar
  • No lugs needed, reducing installation time and improving resistance to vibration
  • Weight savings and material savings compared to wire alternatives
  • Reduces total installation cost
  • Traceability codes and designation part numbers printed on insulation
  • Conforms to NF EN 45545 obtaining an HL3 classification for chapters R22 and R23
  • 100% production dielectric tested
  • RoHS compliant
  • Tinned copper allows for copper or aluminum conductor connections
  • On request, can be manufactured with other colors (typically with Orange sleeve for battery connection)
  • Compliant to ISO 6469-1 (Electrically propelled road vehicles - Part 1: Rechargeable energy storage system) - Section 6.2.2 Vibrations
  • UL® 758 Appliance Wiring Material, Model Style 11992
Certifications
  • EN 45545-2 EN 45545-2
  • IEC 60695-2-12 IEC 60695-2-12
  • IEC 61439-1 IEC 61439-1
  • IEC 61439-1 Class II IEC 61439-1 Class II
  • ISO 5659-2 ISO 5659-2
  • Bureau Veritas ACE 14/163/02
  • UL UL94-V0
  • CE, ERIFLEX FLEXADV EN 61439-1
  • ERIFLEX UV IEC 60364-5-52, ISO 4892-2
  • UR ANSI/UL 67, ANSI/UL 891
  • cUR CSA C22.2 No. 29, CSA C22.2 No. 244
  • CSA CSA C22.2 No. 0, CSA C22.2 No. 210
  • UL (IEC) UL 2885 - IEC 60754-1, IEC 60754-2, IEC 62821-1 Annex B, IEC 61034-2
  • UR ANSI/UL 758
  • CSA C22.2 No 210
  • IEC Voltage Certification IEC 61439-1; IEC 62271-1; EN50264-3-1
