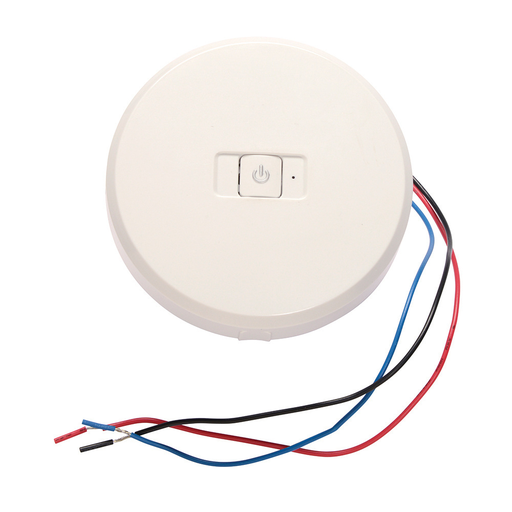

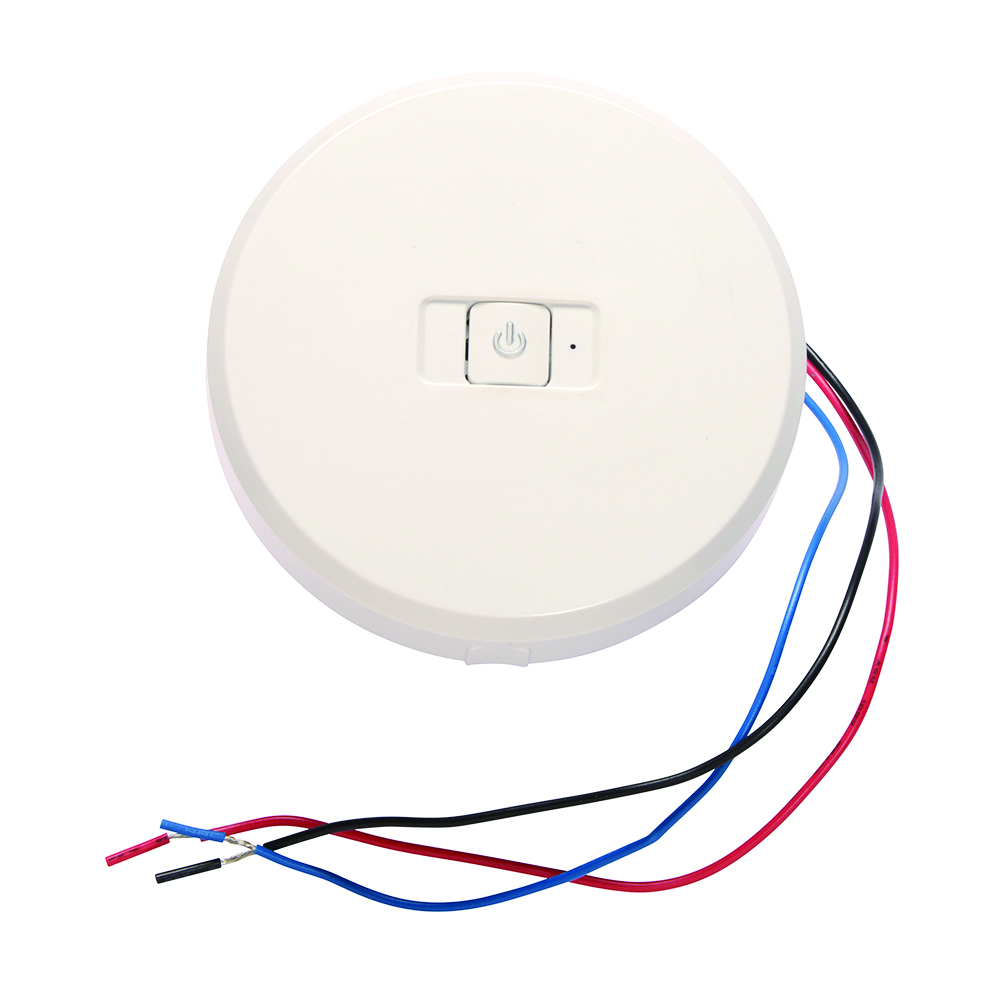

Product image for Pass & Seymour RFP Radio Frequency Ceiling Pack
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour RFP Radio Frequency Ceiling Pack

Manufacturer: Pass & Seymour / Legrand | Catalog # RFP | Echo Electric Part # 404686
$124.24/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Installation / Instruction Manual
Plug load control can be easily achieved by installing the Legrand RF Receptacle into the branch wiring system and tying the low voltage RF Signal Pack into an occupancy sensor and 24Vdc power pack (PWP120277). The two are bound by a reliable wireless, RF connection. The RF Receptacle features an internal relay to switch the plug load on/off according to the sensor's command. The receptacle's feed-thru capability offers a simple and efficient means for energy savings and code compliance.

Technical Information

Amperage
15 Amp
Capacity
Single
Duty Rating
Extra Heavy Duty
Grade
Specification
NEMA
5-15R
Termination Type
Leaded
Type
Non-Reversing
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007039795
Color
White
GTiN
00785007039795
Product UPC
78500703979

Dimensions

Depth
0.62 Inch
Height
3.81 Inch
Width
3.52 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • One RF Signal Pack can bind up to 16 RF Receptacles for convenient new and retrofit solutions.
  • Communication range of 30 feet in worst-case environment: up to 150 feet in ideal environment.
  • Low profile design allows device to blend seamlessly into any decor.
  • Push-in locking tabs allow for convenient rotation after installation to improve RF communication.
  • Operates in a quiet 915 MHz band.
  • Compliant with Part 15 of the FCC Rules.
  • LED Indicator Light on the signal pack guides the binding process.
  • Two mounting options (Acoustic Tile Mounting and Keyhole Mounting) offer productive solutions for fast, convenient installation.
Certifications
  • UL Listed
  • cULus Listed
