KLEIN VDV501-770 Scout® Pro Max Cab

Manufacturer: Klein Tool | Catalog # VDV501-770 | Echo Electric Part # 405412
$469.16/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 13 to 21 days
Product Spec Sheet Safety Data Sheet

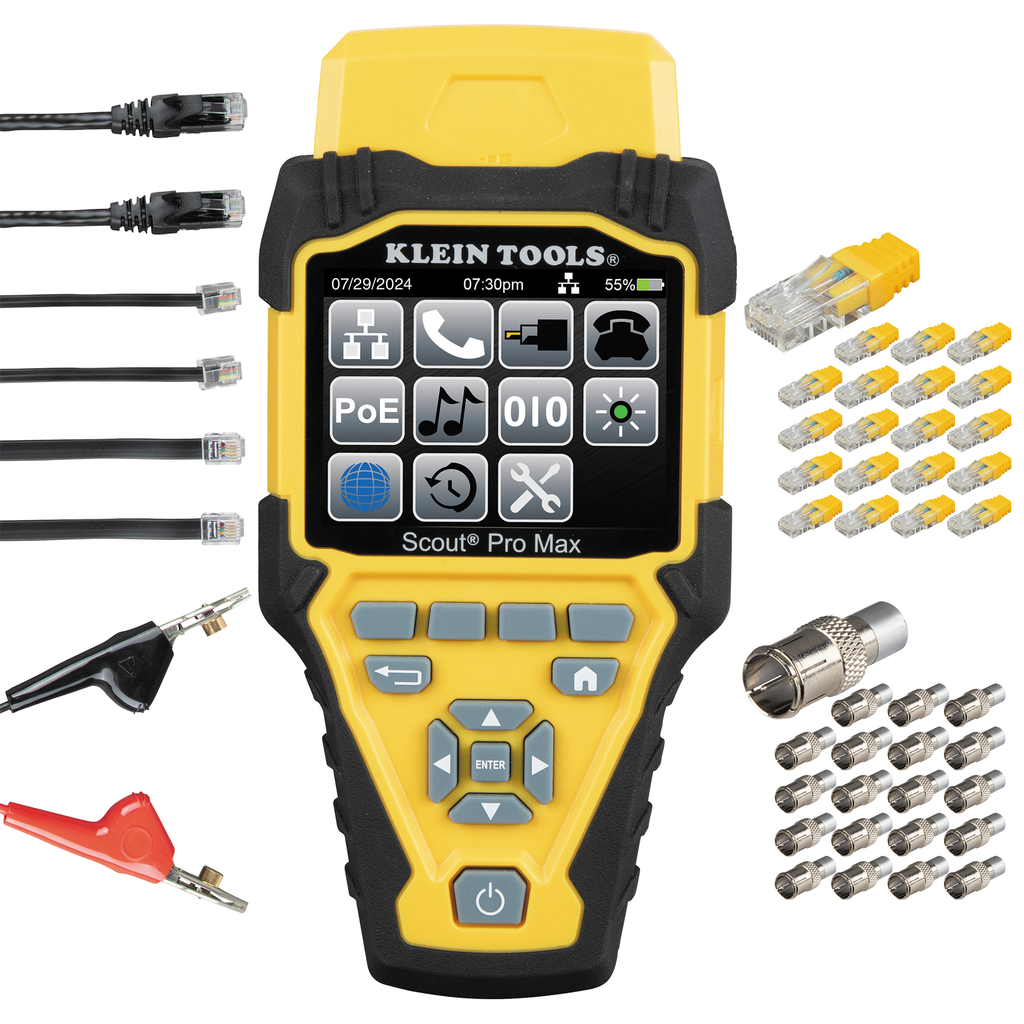

Scout® Pro Max tests and troubleshoots RJ11, RJ12, RJ45, and F-connector terminated cables and provides analog and digital tone generation for cable tracing. It measures cable lengths (via TDR) and detects distance to faults. Generate reports to show custom test history. Tests shielded and unshielded cables. Trace up to 20 locations at a time with included remotes. Perform hub blink testing, measure active and passive Power over Ethernet (PoE). Test POTS, and detect active network capabilities.

Technical Information

Display Type
LCD
Material
Metal

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644583957
GTiN
00092644583957
Product UPC
09264458395
Weight
3.700 lb

Dimensions

Height
1-1/2 Inch
Overall Length
8 in
Width
4 in
Warnings
  • The RJ45 port is the only jack designed for PoE energized cables. Connecting AC energized cables to any port may damage it and pose a safety hazard to the user.
  • Improperly terminated RJ plugs have the potential to damage the jacks on the VDV Scout® Pro Max. Visually inspect an RJ plug before inserting it into the tester. The contacts should always be recessed into the plastic housing of the plug.
  • Plugging 6-position plugs into the 8-position jack on the tester has the potential to damage the outer-most contacts of the jack unless the plug is specifically designed for that purpose.
  • Always wear approved eye protection.
Features
  • Network cable tester locates, tests, and measures data, phone, and coax cables to ensure fast and accurate installations and troubleshoot faults
  • Full color back-lit screen and internal memory to store, download, and output test results for easy report management
  • Measure cable length up to 2000 feet (610 m) and distance to fault with TDR
  • Digital / Analog tone generation to easily probe cables (requires Cat. No. VDV500-223, sold separately)

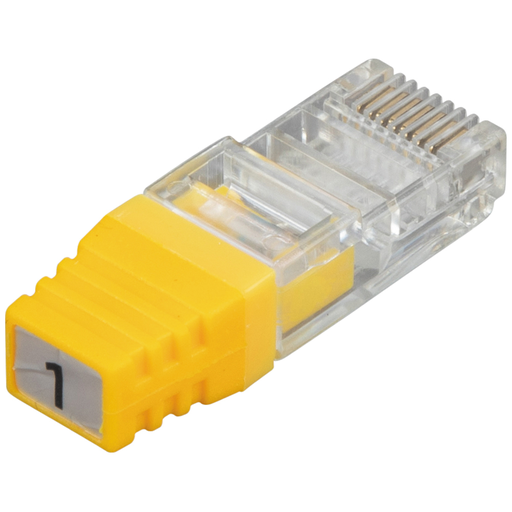

  • Locate and identify up to 20 locations with ID remotes for greater cable management and organization
  • Detect network capabilities and connection speeds up to 10G bps
  • Initiate hub blink to easily identify and locate cables on device and POTS testing
  • Measures Cable Length; Backlit LCD; Hub Blink
Replaced By Products
  • VDV770129
  • VDV999770
  • VDV770770
