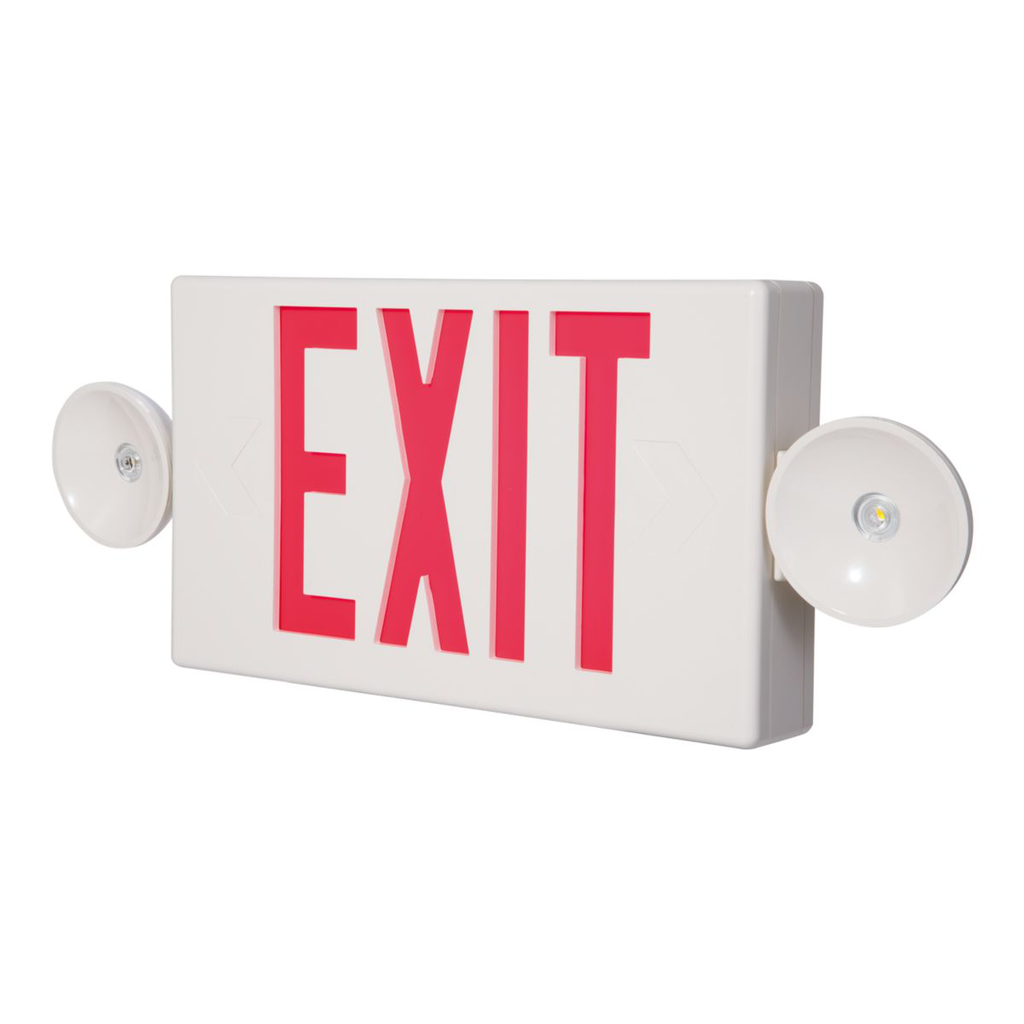

CLS LPXC25R3SD SLPLASTICCOMBO,25 FT

Manufacturer: Cooper Lighting | Catalog # LPXC25R3SD | Echo Electric Part # 428956

$332.04/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
The LPXC combo series is a UL 924 code compliant solution for exit and emergency requirements. It is designed to operate for a minimum of 90 minutes during a power outage. It features a polycarbonate housing, LED sources for both the exit and the emergency heads, as well as a labor saving self-diagnostic option that automatically performs required NFPA testing. It is field configurable for either red or green Exit letters. The LED emergency heads are available with 25 feet or 50 feet of egress coverage. The LED source and nickel cadmium battery require no maintenance. The series is also available as an exit or a combo with remote capacity. The remote capacity can be used for extended run times or to power Sure-Lites SRP/SRM LED remotes.

Technical Information

Amperage
0.012
Applications
For Lighting
Lamp Type
LED
Lumens
100 Lumen
Material
Polycarbonate
Mounting Type
Ceiling,Wall
Number of Lamps
2
Size
21.75 IN Length 2.938 IN Width 8.0 IN Height
Standard
CSA Ceritified (C22.2 60601-1, C22.2 60950-1, C22.2 21),ETL Listed,NAFTA,NEC (2011Article 517),NFPA (99 2012 Ed),UL Listed (60601-1, 60950-1, 1363A, 1449)
Type
Exit Signs
Voltage
120-277V
Wattage
2.2/3.2 Watt

Manufacturer Information

Brand
Cooper Lighting Solutions

General Product Info

12-Digit UPC
080083770953
Fixture Type
Emergency Exit Combination Light
GTiN
00080083770953
Product UPC
08008377095
Weight
4.05 lb

Dimensions

Height
8 Inch
Length
21-3/4 Inch
Width
2.938 in

Certifications and Compliance

ARRA Compliant
No
Country of Origin
China
Features
  • 21.75 IN Length 2.938 IN Width 8.0 IN Height
  • LED source with up to 50 feet of egress coverage
  • Nickel cadmium battery
  • Ships with both red and green LED lamping
  • Polycarbonate housing available in white or black
  • Self-diagnostic option
  • Remote capacity options
  • EZ key external battery disconnect
  • UL924/NEC/OSHA
  • 5-year product warranty, 7-year prorated battery warranty
