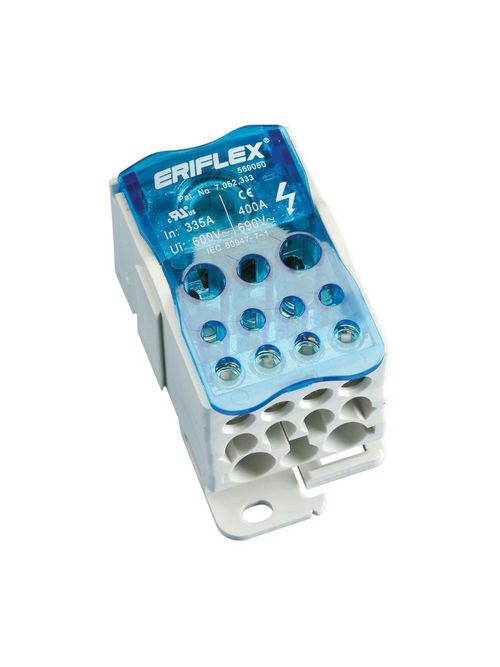

Erico 569050 Single Pole Dist. Block, 335 A UL/CSA, Cable Line, 11 Cables Load, Copper

Manufacturer: Erico, Inc | Catalog # 569050 | Echo Electric Part # 453110
$32.32/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
Primary device for easy assembly between a wide range of conductors to perform electrical power distribution. Single Pole Distribution Block UD-400A, Copper.

Technical Information

Amperage
400 Amp; 335 Amp
Applications
Power Connections
Enclosure Rating
IP20
Material
Copper,Thermoplastic
Number of Conductors
Cable; 11 Cables
Number of Poles
1 Pole
Size
1.99x3.79x1.93
Temperature Rating
185 Deg F
Type
Distribution Blocks
Voltage
1,000 VAC/DC; 600 Volt

Manufacturer Information

Brand
nVent Eriflex
Sub Brand
ERIFLEX

General Product Info

12-Digit UPC
782856594239
Color
Blue,White
Environmental Conditions
86 To 167 Deg F
Finish
Tinned
GTiN
00782856594239
Product UPC
78285659423
Weight
0.41 kg
Features
  • Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
  • Screw retaining cover is hinged and removable
  • Design allows for visual inspection of conductor and confirmation of connection
  • Modular snap-together blocks for building multi-pole power blocks
  • Easily clips onto DIN rail or mounts to panel with screws
  • 95% fill ratio
  • RoHS compliant
  • Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
  • Halogen free
Certifications
  • cUR CSA C22.2 No. 158
  • UR ANSI/UL 1059
  • CSA CSA C22.2 No. 158
  • CE, ERIFLEX UD EN 60947-7-1
  • EN 45545 EN 45545-2:2013
  • UKCA, ERIFLEX UD EN 60947-7-1
